ARP 4761 vs ISO 26262: Safety Doesn’t Fall From The Sky, But Inspiration Could

The cars cannot fly (yet!), but our safety process may be inspired by aviation

Diving into automotive topics as a safety engineer, but carrying baggage from aviation industry, some comparison was bound to happen.

Whether flying or driving, safety and reliability are a priority, and for both industries, there is a dedicated standard providing regulations to ensure safe operation. But, if we need to comply to a required, industry suitable standard, it doesn’t necessarily mean that the other one is off the limits for guidance, if supplementary, or inspiration. While automotive systems are subject to different stressors and operational conditions compared to aircraft, many underlying principles (redundancy, failure modes, risk quantification) are common and can prompt a valuable cross-industry exchange.

Let’s pick a centrepiece for today

In automotive industry supported by ISO 26262, much of focus is placed upon FTA, FMEA, or HAZOP. So not to neglect DFA, we might put it in spotlight here.

Dependant Failure Analysis (DFA) was already discussed in our previous blogs, related to enhancements made in second edition of ISO 26262, or in terms of quantification of potential dependent failure initiators (DFI), where we also reflected on IEC 61508 and its qualitative assessment ways.

Here, we will turn to aviation’s SAE International ARP4761™A, which defines common cause methodology, a rigorous framework built out of a set of methods. The results of these analyses support the claim that the independence requirements have been met by the implementation.

Source: https://new.express.adobe.com/

Independence Principles and Common Mode Analysis

Certain features of system architecture – redundancy, protection, monitoring – might require independence between their elements due to “no single point of failure” requirements or requirements related to development assurance level (DAL) assignment. This independence request is defined as an Independence Principle in ARP4761™A.

A single failure, error, or event that produces undesirable effects on two or more systems, equipment, items, or functions is defined as a common cause.

A common cause affecting multiple redundant elements of a system might compromise the availability safety objectives. A common cause affecting both the protection and the protected function, or the monitoring elements and the monitored function of a system might compromise the integrity safety objectives.

The need for independence in achieving safety objectives should be identified and captured in formal independence requirements (with help of a CMA questionnaire).

Two commonly used methods to identify Independence Principles are:

1. Design Analysis, and

2. Fault Tree Analysis, with two submethods

          a. AND-Gate Analysis, and

          b. Cut Set Analysis.

The defined Independance Principles are then fed into common cause methods for an assessment. The method most comparable to automotive’s DFA, in aviation world, would be Common Mode Analysis (CMA).

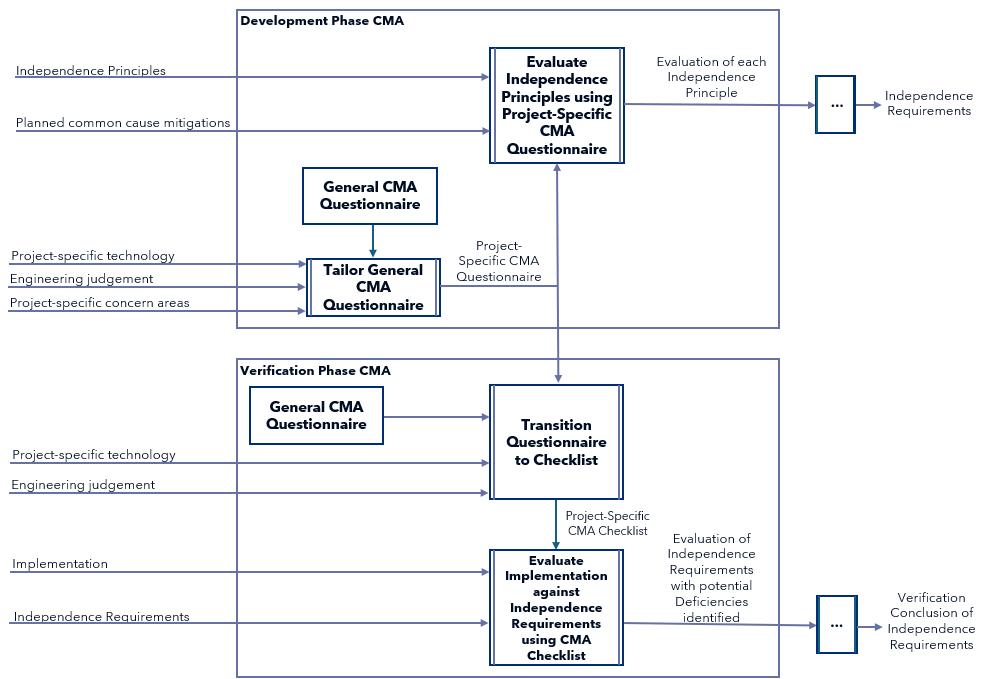

One method to plan CMA activities is to use the CMA questionnaire (or set of questionnaires). The CMA questionnaire is a task identification tool, tailored to identify the type and the source of the common causes within the particular scope of work. They are derived based on the example data presented in ARP4761™A (not exhaustive) and previous experiences. The level of detail of these questionnaires changes with the complexity of the system or novelty of the technology and is adjusted to the level of analysis.

The CMA process can also be used in terms of FDAL or IDAL assignment and is conducted in a similar way. But in this case, there is a different aim – instead of recognizing potential failures, the activities focus on identifying potential error sources within the development/design process which might compromise the intended independence of functions and items. The emphasis here is on ensuring an adequate independence, as applicable, to comply with the DAL assignment.

Let’s scrutinize, for some cross-domain inspiration!
